Elite Gear

Elite ring and pinion sets use the latest engineering and manufacturing technology to produce OEM quality gears at an affordable price. All Elite gears are machined from premium 8620 alloy steel, then heat treated to the strictest standards for maximum strength and durability. Elite gears then go through an extensive lapping process to assure easy setup, excellent contact patterns, and quiet operation.

Full Spool

High Performance steel spool is made from the highest quality materials to ensure high strength and long life in performance applications. Spools provide 100% power to both tires at all times and are a lower cost alternative to lockers. Spools are not recommended for street driven vehicles.

Master Install Kit

Premium master install kit uses only the highest quality components including Koyo brand bearings. Included are carrier bearings and races, pinion bearings and races, pinion seal, complete shim kit, ring gear bolts, pinion nut, crush collar, threadlock, marking compound, brush, and gasket or RTV silicone.

*Includes C-Clip Eliminators to fit Chevelle, Camaro, Nova. Will Not fit Impala

Application: 1965-1972 GM 8.875" Chevy 12 Bolt Car Rearend (will Not fit Truck or Impala)

Pinion Splines: 30

Axle Spline: 33 (Must use Moser 33 Spline Axles)

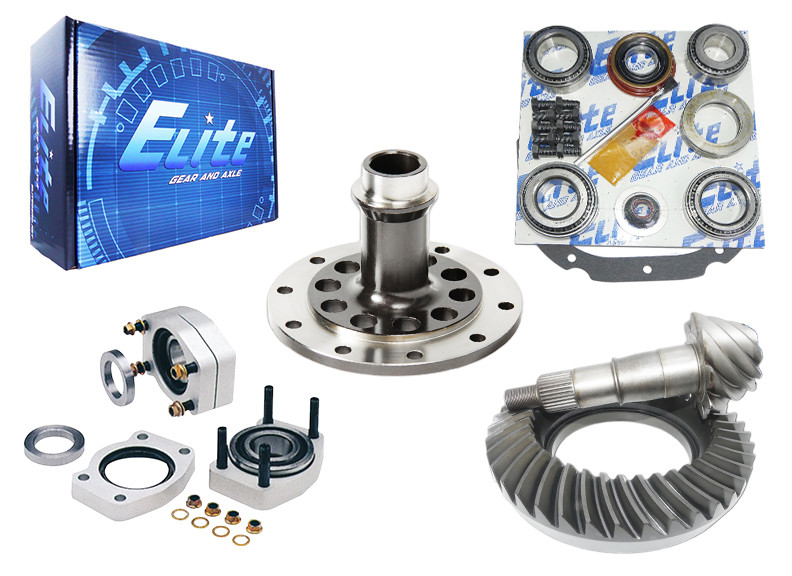

Package Includes:

1- Chevy 12 Bolt Car Ring and Pinion Set (Elite Gear)

1- Chevy 12 Bolt Car Full Spool (33 Spline)

1- Chevy 12 Bolt Car Master Install Kit (Koyo Bearings)

1- Set C-Clip Eliminators (1.400" Axle Bearing Journal)
